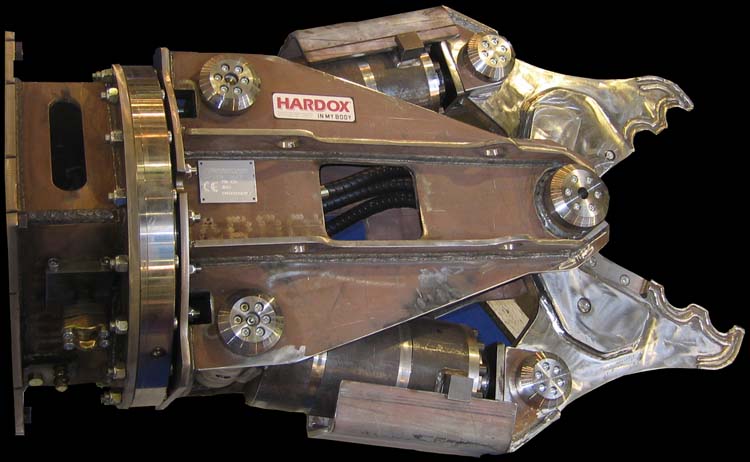

PDO Series Crusher

PDO Crusher

EEI-Socomec presents the new crushers series for excavators from 1.7 up to 13 tons.

POWERFUL

          RELIABLE

                    VERSATILE

The PDO series crushers are hydraulically powered by only two hydraulic hoses. Opening, closing and rotation are activated by using one electric solenoid valve. All models have a continuous 360 rotation. Manufactured using Hardox® 400.

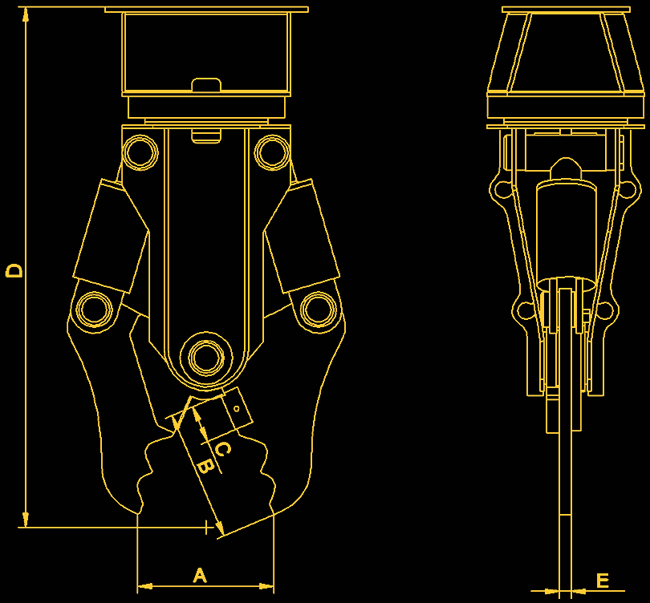

MODEL PDO 200 PDO 300 PDO 650
Weight in working conditions lbs 440 660 1430
A inch 14 14 20
B inch 14 14 16
C inch 3 ¼ 3 ¼ 6 ¼
D inch 45 49 60
E inch 1 1 ¼ 1 ½
Cylinder force t 20 30 50
Cylinder force t 15 22 35
Cutter force t 40 70 100
Max pressure psi 2900 3600 4000
Recommended working pressure psi 2600 3300 3600
Oil flow g/min 8 14 16
Rotation Hydraulic 360°
Rotation pressure psi 2900 3600 2000
Rotation oil flow g/min 8 14 15
Excavator weight t 1,7-3 3-6 6-13
